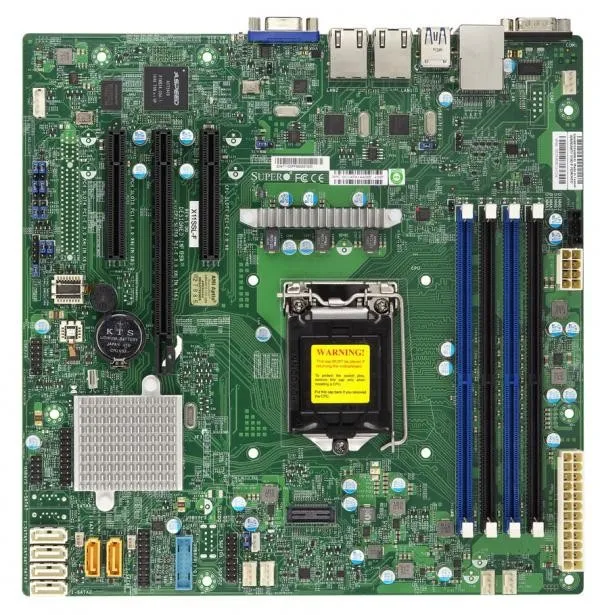

| MBD-X11SSL | X11SSL |
|---|---|
| Form Factor | Micro-ATX |
| Dimensions | 9.6" x 9.6" (24.38cm x 24.38cm) |
| CPU | Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5. |
| Note | BIOS version 2.0 or above is required to support 7th Generation Intel® Core i3 Processors and Intel® Xeon® Processor E3-1200 v6 series |
| Memory Capacity | 64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 4GB, 8GB, 16GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Chipset | Intel® C232 |
| SATA | Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210-AT |
| Graphics | Aspeed AST1400 |
| USB | 6 USB 2.0 ports (2 rear + 4 headers) |
| Video Output | 1 VGA port |
| Header | 1 COM Port (1 rear) |
| TPM | TPM Header |
| PCI-E | 1 PCI-E 3.0 x8 (in x16 slot), |
