Mô tả
| CPU | Support for 8 th Generation Intel ® Core™ i7 processors/Intel ® Core™ i5 processors/Intel ® Core™ i3 processors/Intel ® Pentium ® processors/Intel ® Celeron ® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
|---|---|
| Chipset | Intel ® B360 Express Chipset |
| Bộ nhớ | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8 th Generation Intel ® Core™ i7/i5 processor. (Please refer "Memory Support List" for more information.) |
| Card đồ họa tích hợp | Integrated Graphics Processor-Intel ® HD Graphics support: 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory of 1 GB |
| Audio | Realtek ® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | Intel ® GbE LAN chip (10/100/1000 Mbit) |
| Khe cắm mở rộng | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) 1 x M.2 Socket 1 connector for an Intel ® CNVi wireless module only (CNVI) |
| Giao diện bộ nhớ | Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel ® Optane™ Memory Ready |
| USB | Chipset: 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) * The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable. |
| Kết nối I/O bên trong | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x digital LED strip headers 2 x digital LED strip power select jumpers 2 x RGB (RGBW) LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
| Kết nối bảng phía sau | 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 1 x USB 3.1 Gen 2 Type-A port (red) 3 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| Điều khiển I/O | iTE ® I/O Controller Chip |
| Theo dõi phần cứng | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Tính năng duy nhất | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
| Gói phần mềm | Norton ® Internet Security (OEM version) cFosSpeed |
| Hệ điều hành | Support for Windows 10 64-bit |
| Hệ số khuôn | Micro ATX Form Factor; 24.4cm x 23.0cm |
| Ghi chú | Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |

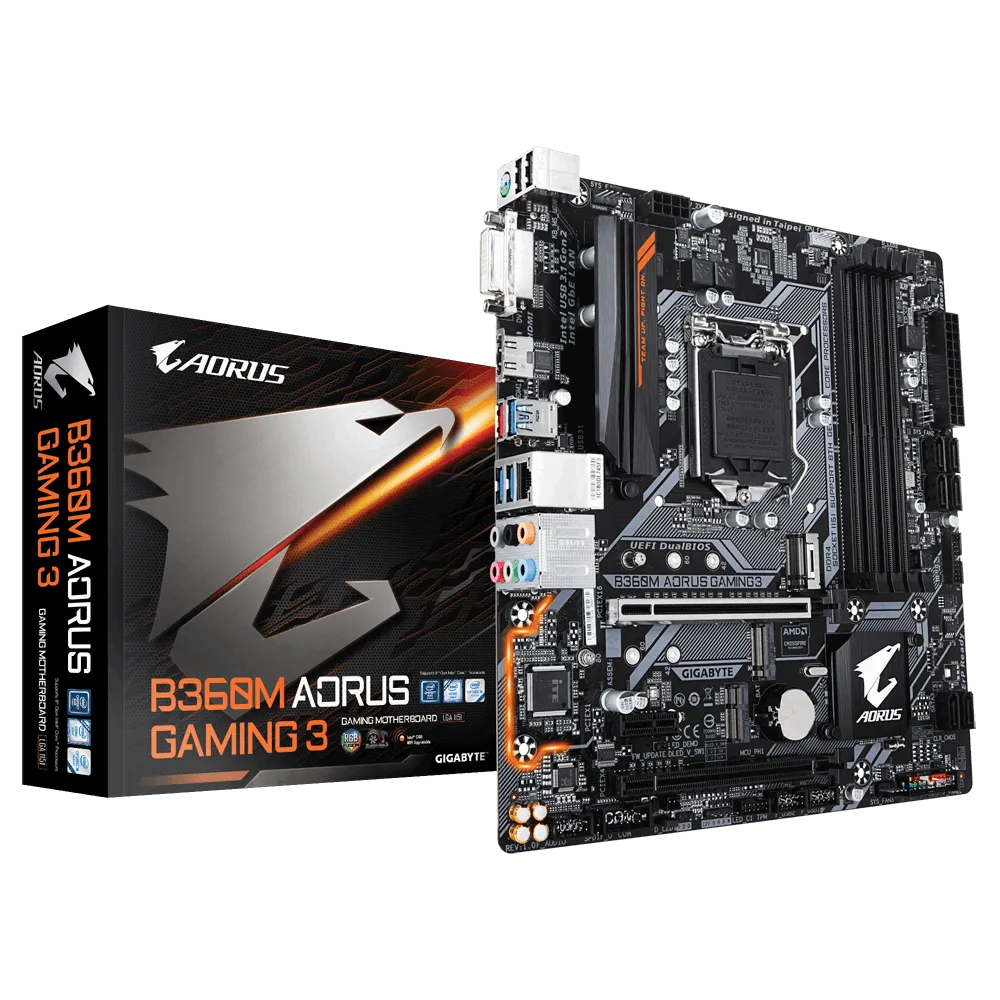

Ảnh minh họa theo model. Với hàng đã qua sử dụng, NovaTech xác nhận tình trạng ngoại hình thực tế trước khi giao.
