Mô tả
| Sản phẩm | Bo mạch chủ |
|---|---|
| Tên Hãng | Asus |

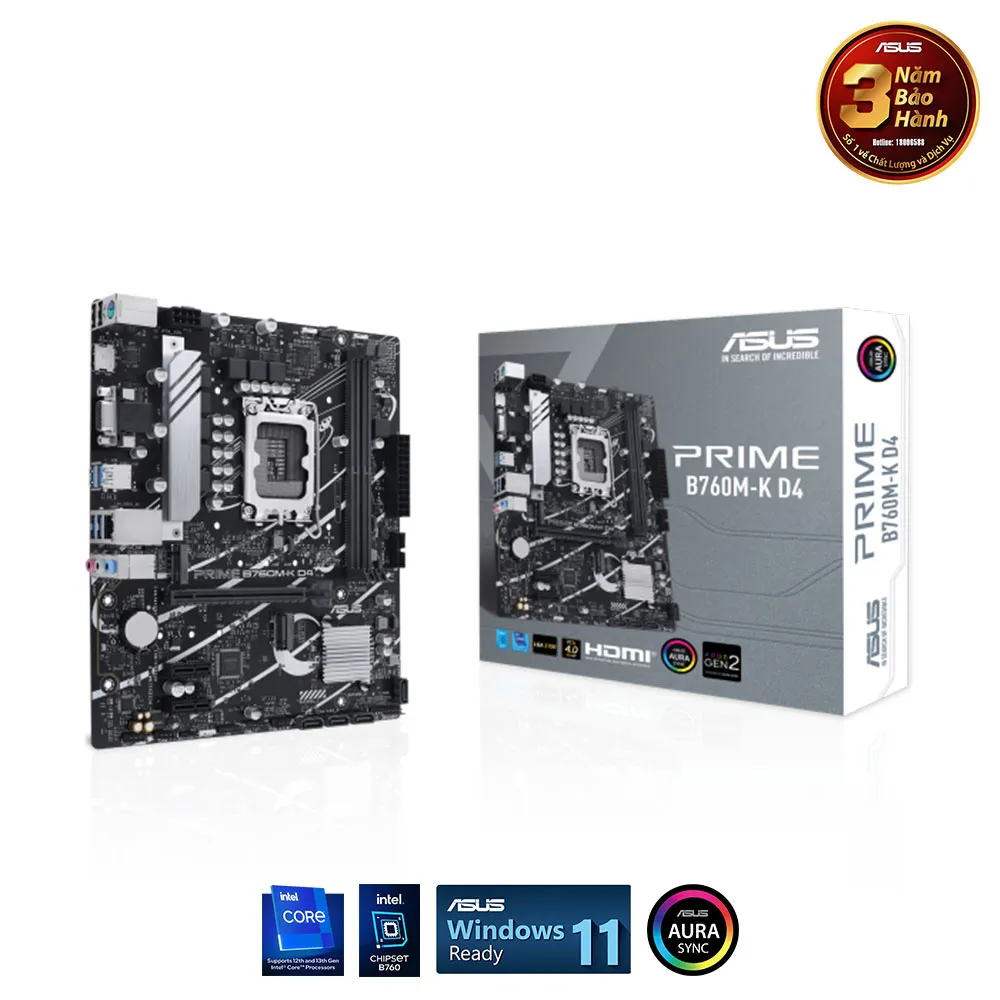

| Model | PRIME B760M-K DDR4 |
| CPU hỗ trợ | Intel |
| Chipset | B760 |
| RAM hỗ trợ | 4 2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC) 3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Khe cắm mở rộng | Intel ® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel ® B760 Chipset 2 x PCIe 4.0 x1 slots |
| Ổ cứng hỗ trợ | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel ® 13 th & 12 th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Cổng kết nối (Internal) | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Cổng kết nối (Back Panel) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI ® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Wireless | 1 x Realtek 2.5Gb Ethernet |
| Kích cỡ | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
Ảnh minh họa theo model. Với hàng đã qua sử dụng, NovaTech xác nhận tình trạng ngoại hình thực tế trước khi giao.
